Gauge Tie Rod
Gauge Rie Rod

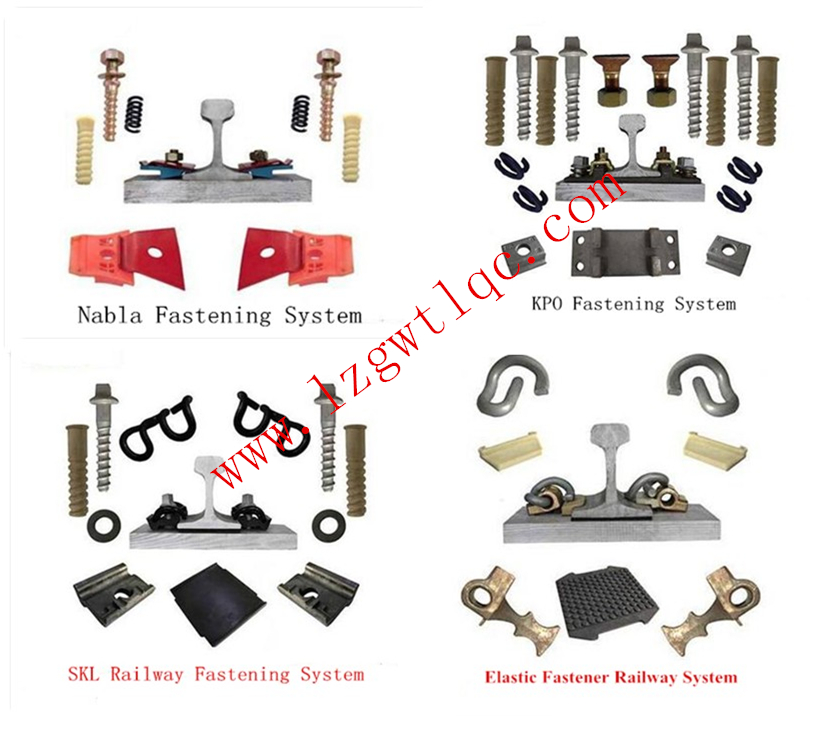

We Provide With the Most Popular International Stardard Railway Fastening System Accessories:
Our Full Production as followings for reference:
1)Railway Fishplate/Joint Bar/
l Available Type:
---North America:115RE,132RE;
---Asia&Africa:UIC54,UIC60;
---South America:TJ45,TJ57;
---British Commonwealth:BS60,BS75;
l Raw Material:45#,50#,B7,etc.
l Surface:Natural or Paint.
2)Rail Clip/E Clip
l Type:E1609,E1809,E1817,E2055,E2056,E2009,E2001,E2006,PR401,PR309;
l Raw Material:Q235,55#,40Mn2,20MnSi,etc;
l Grade:4.6,4.8,5.6,6.8,10.9,12.9;
l Surface:Natural,Black,Zinc,etc
3)Railway Tie Plate/Railway Base Plate
l Type:Fit to SKL & E type fish Plate supporting cast iron and forging railway base plate
l OEM is available according to customers drawings and samples.
l Raw Material:45#,QT400-15,QT450-10,QT500-7
l Surface:Natural,Oil,etc.
4)Dog Spike,Railroad Spike/
l Type5/8x5” 9/16x5-1/2”,3/8x3-1/2”,16x16x165,15.9x139.7;etc
l Raw Material:Q235,55#,45#,40Mn2,20MnSi,etc.
l Grade:4.6,4.8,5.6,6.8,10.9,12.9
l Surface:Natural,Black,Zinc,etc;
5)Railway Screw Spike Sleeper Screw/Railway Rail Fasteners
l Type:Ss Series Square Spike from Ss1/130 to Ss25/165 and BS square spike,Twisted Spike,any other type is available according to customers drawings and samples.
l Raw Material:Q235,45#,55#,55Q,etc;
l Surface:Natural,Oil,Black Paint,Zinc,etc;
6) Railway Bolt/Inserted Bolt/Track Bolts/
l Type:
AREMA Track Bolts:115RE,132RE;
UIC Track Bolts and Square Bolts:UIC54,UIC60;
TJ45;TJ57;BS60,BS75 Fish Plate MRailway bolts:T Bolt,HS26,HS32 Series T bolt,turnout,hex bolt,subway bolts.
l Grade:4.6,4.8,8.8,9.8,10.9,12.9,etc;
l Material:Q235,35#,45#,40Cr,etc.
7) Crane Clip/Rail Clamp/Weldable Clip
1) Type: KPO3, KPO6, Many other kinds are available .
2) Raw Material: Q235.45#,etc.
3) Surface: Natural, Black Paint,Zinc, etc.
8) Gauge Apron
Used in UIC54,UIC60,115RE, 132RE, 100RE, 133RE, 100RB railway products.
Specification: 6#, 10#, 14#, 20#,etc.
Raw material: Q235,etc.
9) Rubber Pad/Under Rail Pad
Type: R54 1435mm, R54 1067mm, R60 1435mm, ZW687, ZW700.Pandrol series #7, #8, #9, #11, #12, #13 Nylon Insulators.
Raw Material: Rubber.
Surface: Natural.
10) Rail Shoulder
Type: All kinds available according to customers drawings and samples.
Raw material: QT400-15.QT450-10.QT500-7,etc.
Surface: Natural
11)High Strength Fishtail Bolt/ Clip Bolt / Clamp Bolt
l Type: Hex/Square/Flange Head according to DIN, BS, AREA Stardard
l Specification: M8-M64.
l Grade: 4.6,4.8,5.6,5.8,8.8,etc.
l Raw Material: Q235, 45#, 40Mn2, 20Mnsi, 35CrMo, 40Cr,etc.
l Surface: Natural (oil), Black Paint, Color Paint, Zinc, ext.
